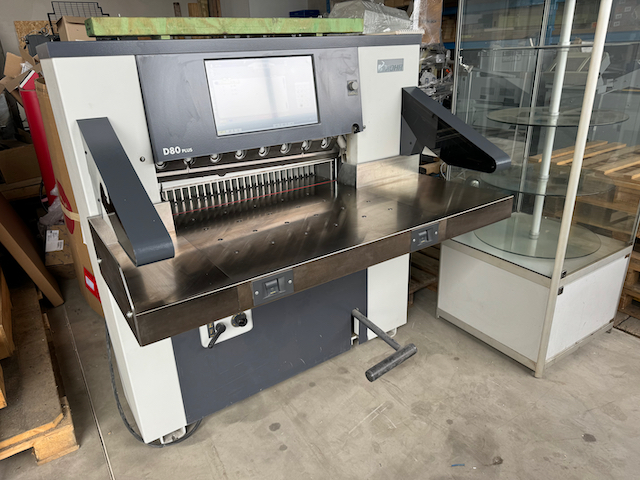

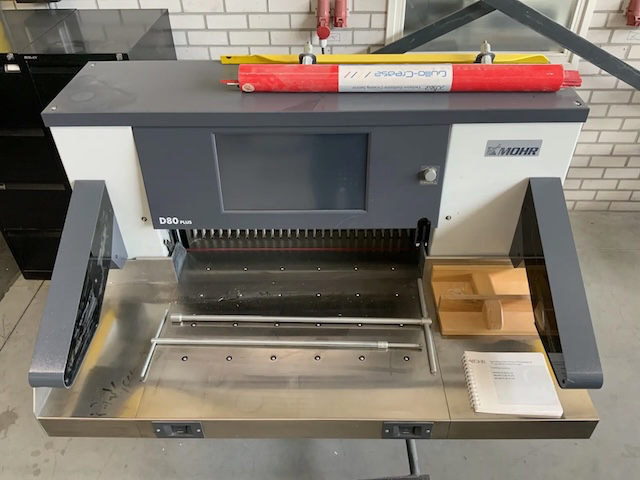

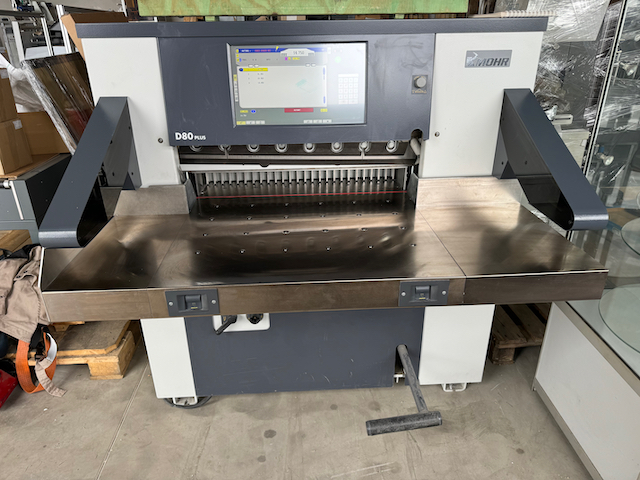

Guillotine Mohr D80 PLUS
Year of manufacturing: 2020
Spécifications:
Cutting width (mm) : 800
Insertion depth: 800 mm
clamp opening max. : 100 mm
adjustable clamp pressure from 180 to 2700 daN
Cutting height/Clamp opening (mm) : 100
Power required (KW) : 4
Dimensions (L x W x H in cm) : 155x197x150

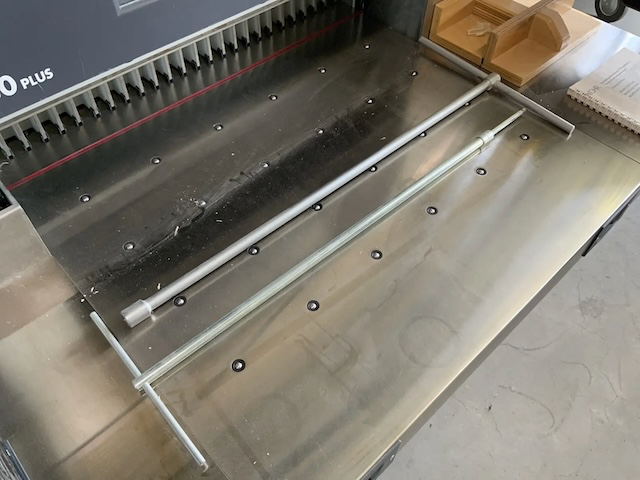

stainless table with air jets, cells
Technical data
Cutting width (mm) 800
Insertion depth (mm) 800
Insertion height max. 80 /100(mm)
Press pressure min. 200/180(daN)
Press pressure max. 1,500/2,700(daN)
Saddle speedReturn (mm/sec) 130
Blade speed (cycles/min.) 20
Residual cut, automatic, without cover plate 15
Residual cut, automatic, with cover plate 50
Width (mm) 1,430
Depth (mm) 1,970
Bobdxmkcbpa
Height (mm) 1,500
Weight (kg) 900

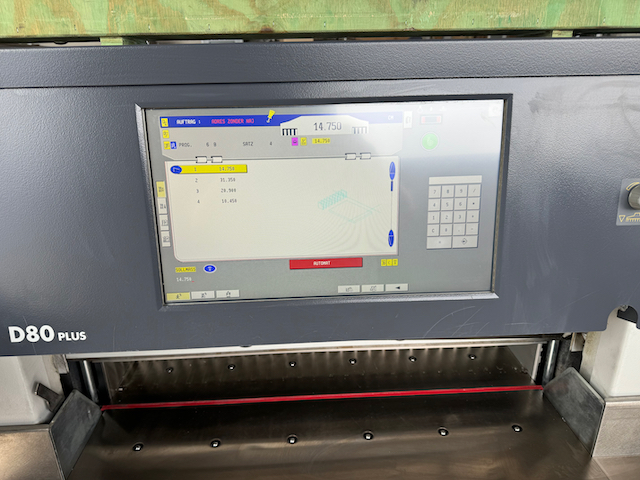

MOHRs are programmable cutting machines in which the precise and gentle oscillating bevel cut is performedhydraulically. This allows the dwell time of the blade at bottom dead center to be adapted to the material. The special cutting precision is due to the robust design and direct dimensional measurement. The stainless steel table surface is extremely slippery and enables easy handling of the material, which is supported by air nozzles as standard on the MOHR Cutter 80. The pressing pressure can be infinitely adjusted to any material to be cut using a rotary knob with scale. The PLUS model is operated via an ergonomically arranged 18.5" touchscreen display. The Compucut® software can automatically generate cutting programs from cutting data from the preliminary stage. This reduces set-up times on the machine to almost zero. The process visualization provides the operator with a graphic display of the material handling, thus eliminating errors and waste.
Customer benefitsExtensive programming options with 1,998 memory locations, simple blade change with automatic switch-off at bottom dead centre and fine adjustment from the front, stability-optimized machine body for optimum absorption of forces during cutting and maximum cutting accuracyMinimal maintenance thanks to the use of innovative materials Integration into the digital workflow with Compucut®: Zero waste. Zero set-up time
Condition: Excellent condition!
Availability: NOW
