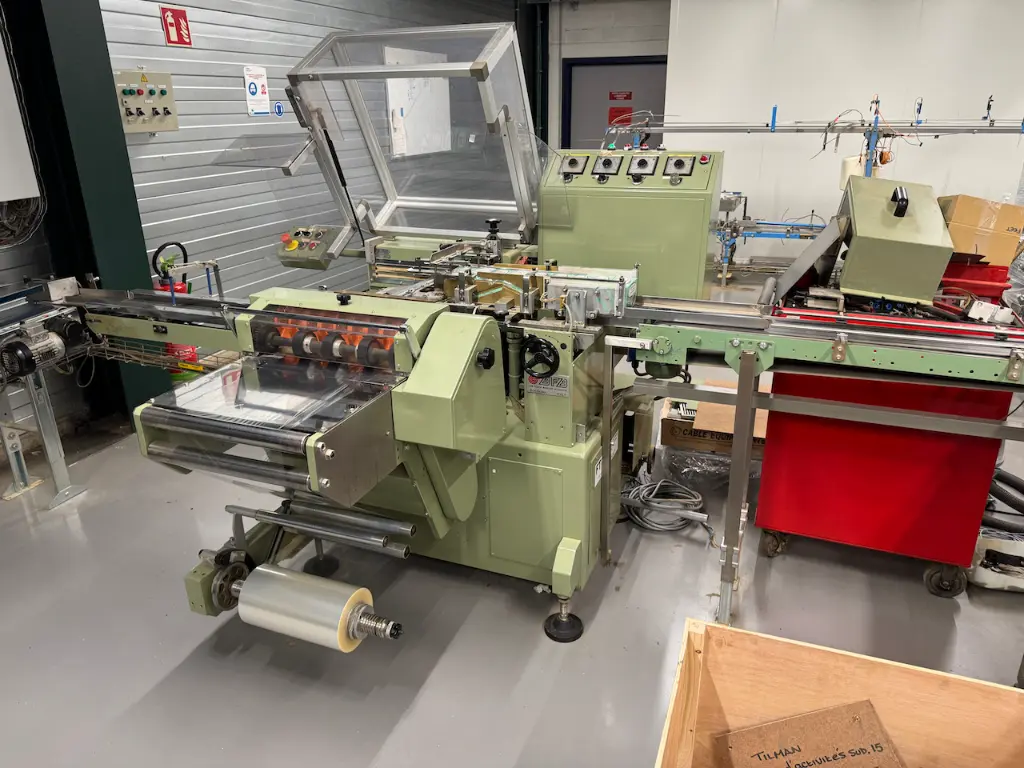

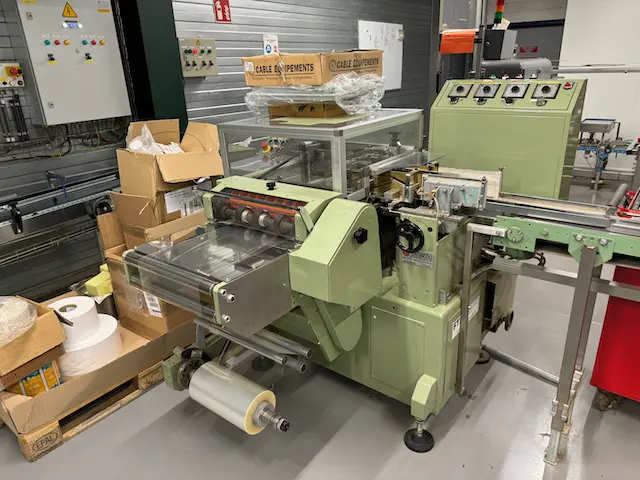

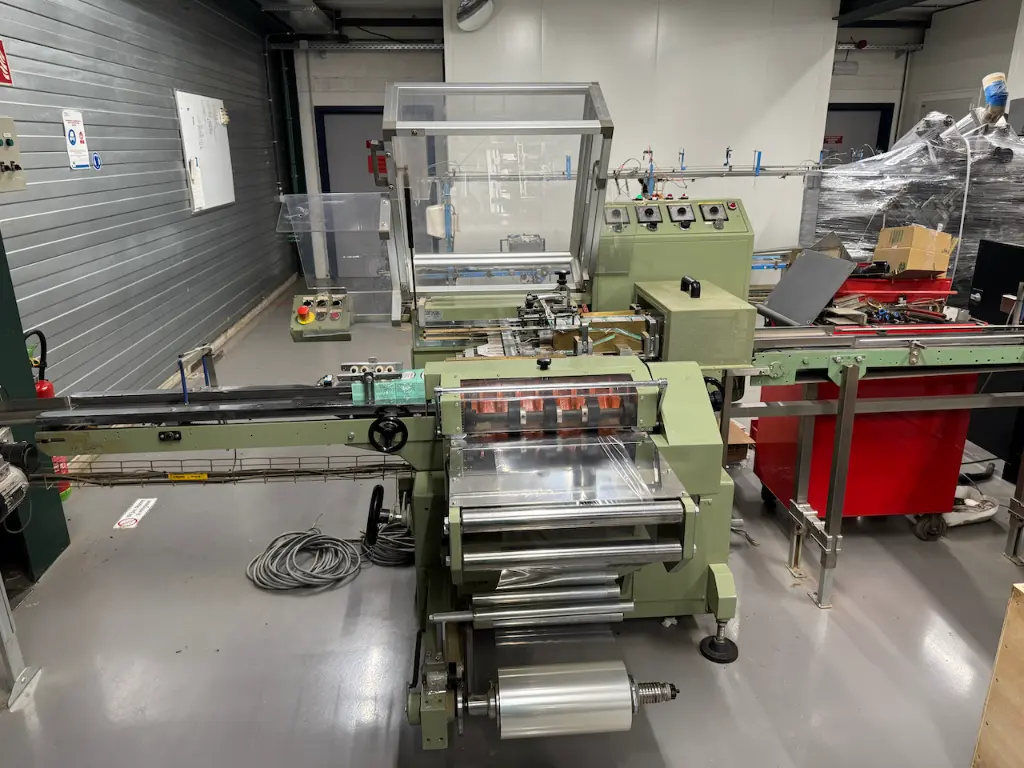

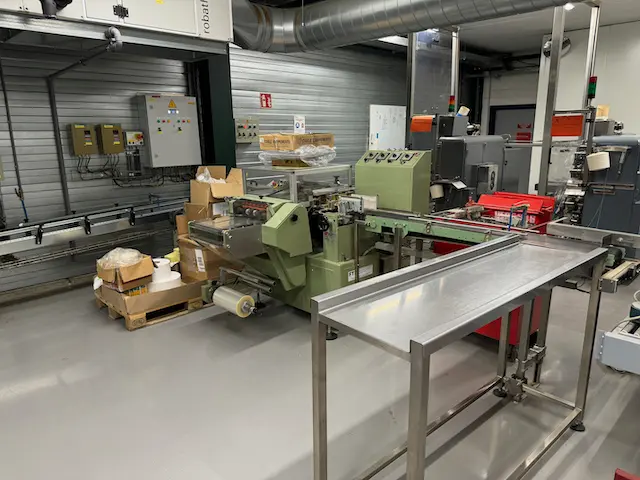

IMA BFB 3701 overwrapping cello used machine

https://www.benexx.net/web/image/product.template/34/image_1920?unique=1c8ccc0
(0 review)

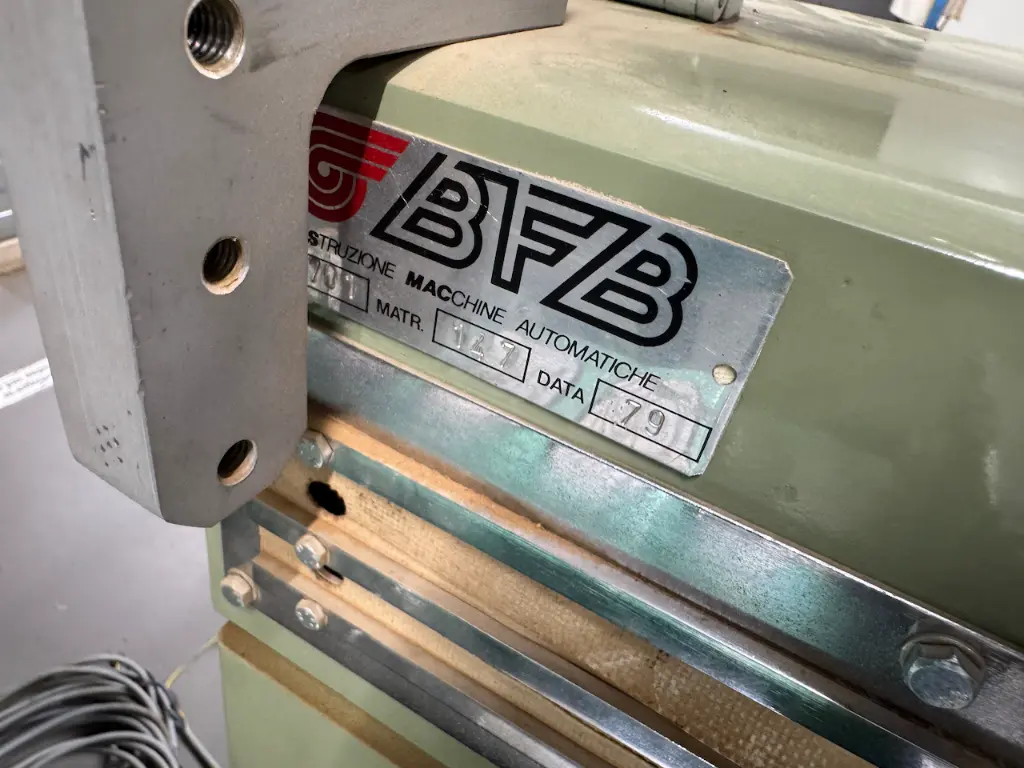

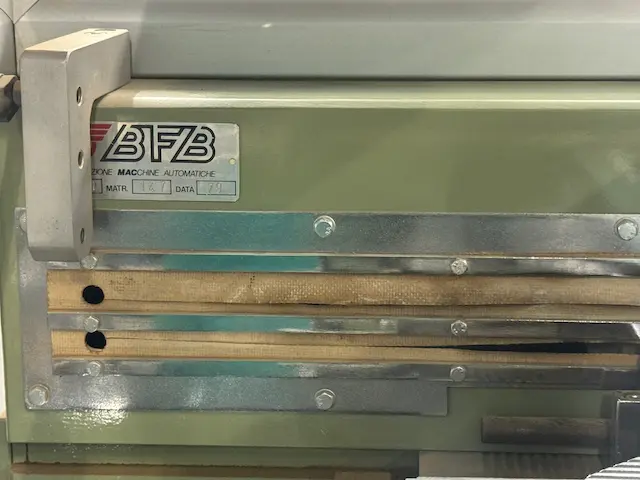

Manufacturer: BFB / IMA (Italy)

Model: 3701

YOM: 1979

condition: used, good

Format (current): 140 x 67 x 85 mm (LxWxH)

The IMA BFB 3701 is a bundler for tea boxes or f.e. cartoned soaps and paper-wrapped soaps. the wrapping materials is heat-sealable film: polypropylene, polyethylene, etc. Speed is up to 70 bundles per minute of 3 cartoned or wrapped soap bars.
The production speed depends on the specification and quality of the wrapping material and product to be wrapped.

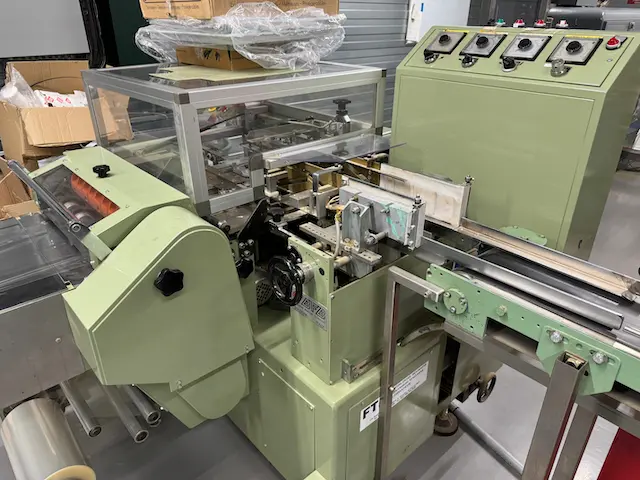

The bundling machine IMA BFB 3701 is complete with:
Infeed belt conveyor in-line with the outlet
Elevator plate to lift up the required number of soaps.
Bundle pusher
Reel-holders at 90° compared with the product flow.
Sealing station for the longitudinal seal
Folding section
Side heating elements for the double-point end folds
Outlet movable side sealing plates
Operator guards with safety interlocks

SPECIFICATIONS
Wrapping speed: up to 70 multipacks per minute
Length range: from 55 to 225 mm
Width range: from 40 to 125 mm
Thickness range: from 25 to 90 mm
