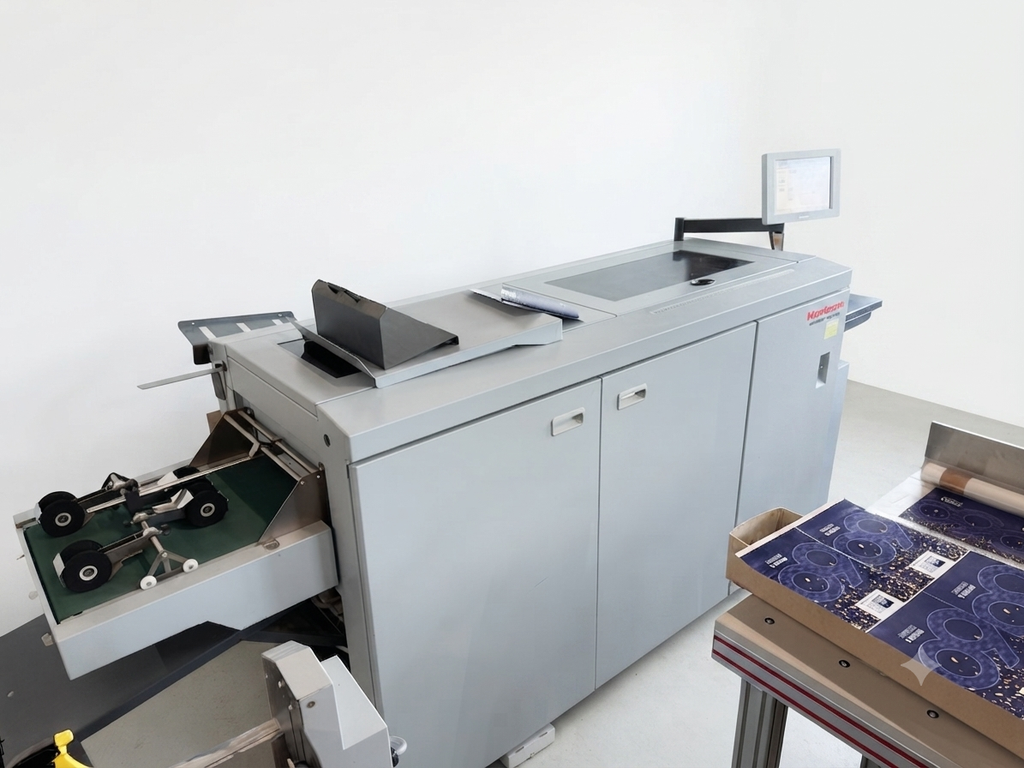

Horizon Smartslitter SMSL - 100
Cutting, creasing, perforating in the longitudinal and transverse direction
YM: 2016

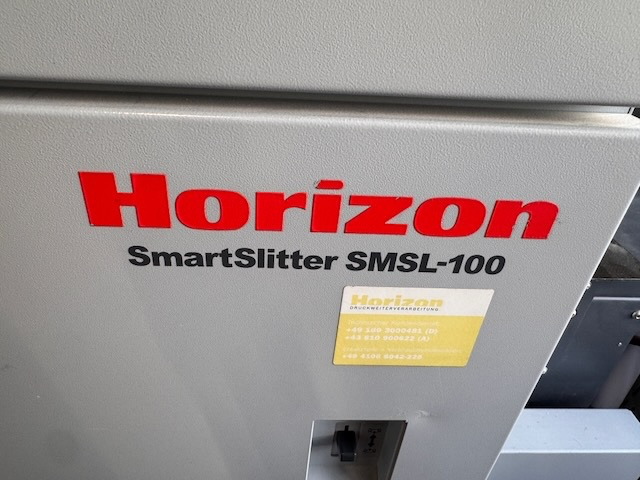

Model: Smart slitter SMSL-100
Length x width x height: 2640.0 × 770.0 × 1500.0
MAX PAPER SIZE: 370 x 670 mm (WIDTH x LENGTH)
MIN PAPER SIZE: 210 x 210 mm
WEIGHT: 80 - 350 g / m2
CORDING: POSITIVE OR NEGATIVE
WEIGHT: 550 Kg
MAX SPEED: 54 ff / min
+ ADDITIONAL MODULE FOR CUT 5 LINES SIZE 5.5 cm
(FORM FOR BUSINESS CARDS CUT)
With this machine it is possible to perform, even in a single step:
cutting, trimming, creasing and perforation.
The use of this multifunction makes it possible to create multiple jobs such as business cards, greeting cards, invitations, flyers and covers for books and CDs.
The use of the SMSL-PR perforator allows to perform partial perforation in the longitudinal direction at the entrance of the sheet making SmartSlitter ideal for production of coupons, tickets, checks and punched correspondence.

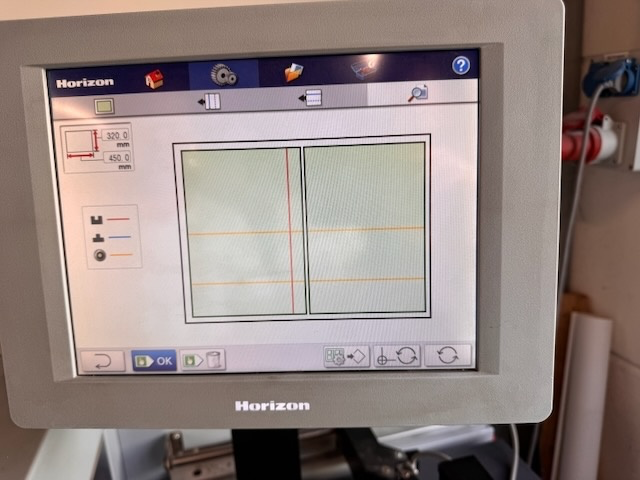

The new high-resolution touch-screen panel with which the SmartSlitter is equipped allows you to perform all start-up and adjustment operations in quickly and intuitively.
The SmartSlitter can interface in a JDF workflow. In addition, job recognition is possible via barcode reader. It's posible finally automatically set all the processing parameters using the Smartconnect software.
Condition: very nice.
Availability: now
