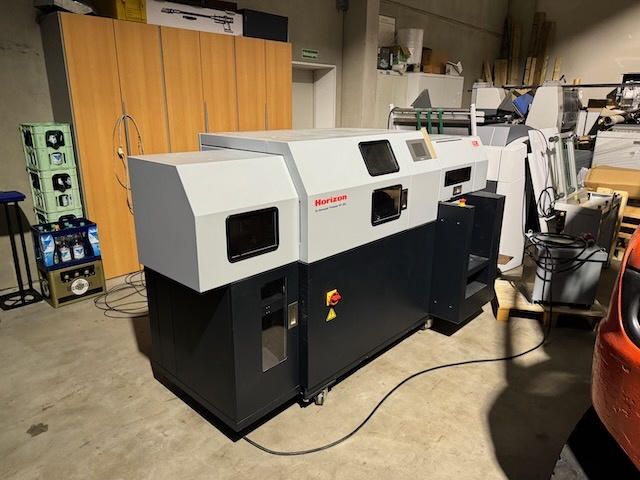

Used three edge trimmer Horizon HT 30C
Year 2019, with only: 300.000 cuts on the counter.
Technical Data:
Automatic set up
Auto feed function
Three edge trimmer
High capacity feed table
Colour touchscreen control
Untrimmed Book Size Max. 320 x 235 mm (12.59" x 9.25")
Min. 200 x 134 mm (7.88" x 5.28")
Trimmed Book Size Max. 305 x 230 mm (12.00" x 9.05")
Min. 200 x 134 mm (7.88" x 5.28")
(148 x 134 mm / 5.83" x 5.28" at minimum by using the optional cutting module)
Portrait book size is A4 / B5 / A5 / 8.5" x 11" / 7" x 8.5"
(by using the optional cutting module for each portrait size)
Trimming Width Max. 99.9 mm (3.93")
Min. 2 mm (0.08")
Trim Thickness Max. 51 mm (2.0")
Book Pile Height Max. 300 mm (11.8")
Clamp and Pressure Hydraulically Operated
Automatic Settings : 4 kN / 5.5 kN / 8 kN, 3 Steps Selectable
Manual Settings : 1.5 kN / 3 kN / 5 kN / 6.5 kN / 8 kN, 5 Steps Selectable
Production Speed Max. 400 books/hr. (Book Thickness 25 mm, 2 piled books)
Max. 500 books/hr. (Book Thickness 10 mm, 5 piled books)
Voltage Frequency 3-Phase 200 / 220 / 400 V, 50 / 60 Hz
Rated Current 3-Phase 200 V 50 Hz 4.3 A (Max. 9.6 A)
60 Hz 3.8 A (Max. 9.8 A)
3-Phase 220 V 50 Hz 3.9 A (Max. 8.7 A)
60 Hz 3.5 A (Max. 8.8 A)
3-Phase 400 V 50 Hz 2.2 A (Max. 4.8 A)
60 Hz 1.9 A (Max. 4.9 A)
Power Consumption 3-Phase 200 V 50/60 Hz 1.25 / 1.20 kW
3-Phase 220 V 50/60 Hz 1.25 / 1.20 kW
3-Phase 400 V 50/60 Hz 1.25 / 1.20 kW
Heat Output 3,950 kJ (950 kcal)
Motors 2.2 kW x 1 / 0.41 kW x 1 / 0.40 kW x 1 / 0.325 kW x 1 / 40 W x 2 / 15 W x 1
Machine Dimensions 2,350(W) x 1,160(D) x 1,370(H) mm (92.6" x 45.7" x 54.0")
Good working order
Test possible very good condition. Like NEW!
Delivery time: immediately
