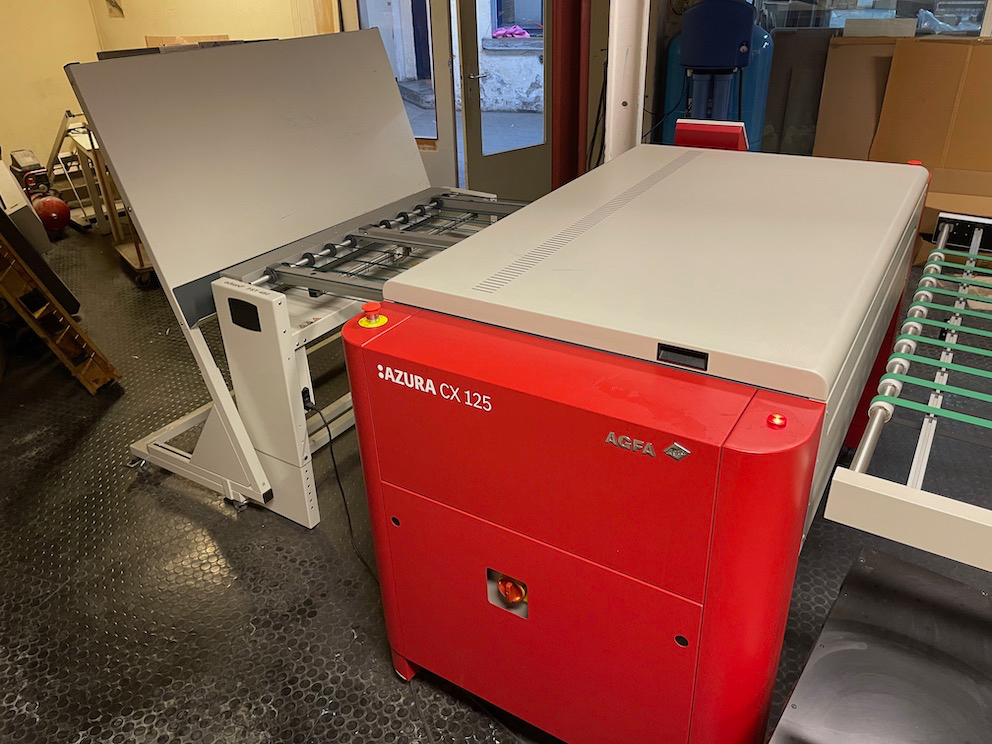

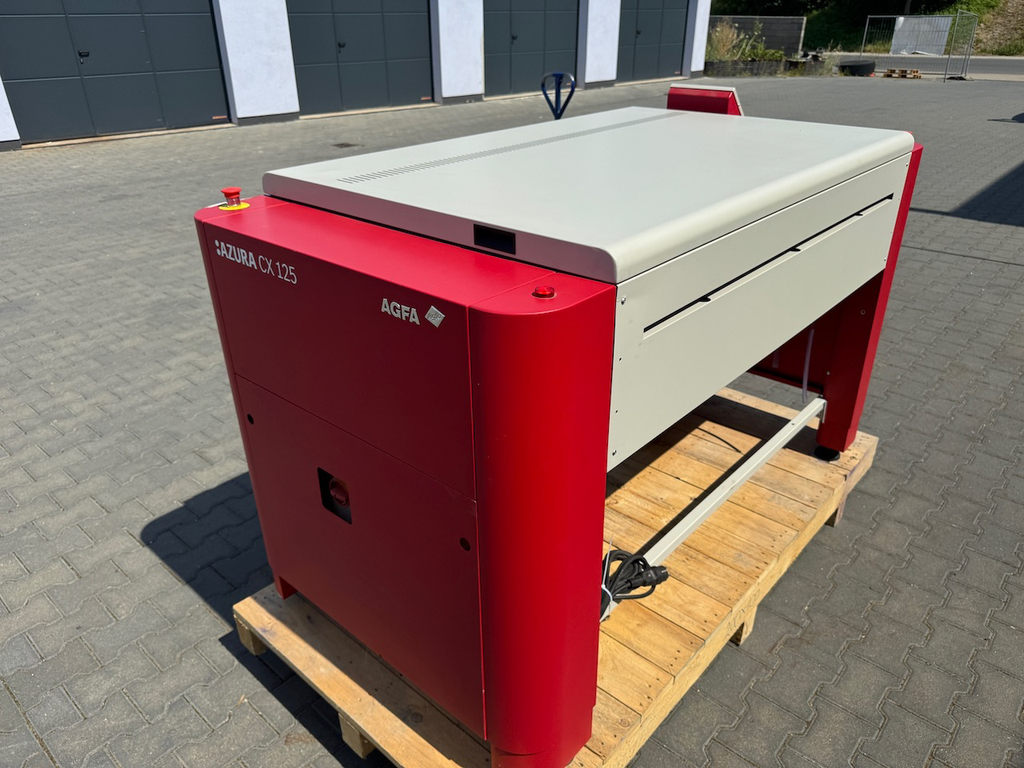

Agfa Azura C 125, Clean-out unit

Clean-out unit Agfa Azura C 125 (without stacker)

Y/M: 2015, counter: only 37.129 plates

– max. plate width: 1250 mm

– One clean/gum finisher solution that cleans and gums the plate in one operation

– Environmentally friendly finisher solution

– Plate width, min.-max.:  200-1250 mm (7.9-49.0”)

– Plate length:  min. 310 mm (11.8”)

– Platesetters: (Agfa) Avalon N8, N16

– Plate speed 60 cm/min (23.6”/min, fixed)

– Plate throughput: 37 plates/h (landscape 745 x 605 mm or 26 plates/h (portrait 1030 x 790 mm)

– Plate volume: Up to 10,000 m²/year

– Brush speed: 150 rpm (fixed)

– Dryer temperature: 55°C (131°F, not adjustable)

– Noise emission – Max.: < 70 dB

– Dimensions (width, length, height): 1820 x 2050 x 1050-1200 mm (71.6 x 81 x 41.3-47.2”)

– Uncrated weight: 210 kg (463 lb)

– Single phase 1W + N + PE 230V / 6 Amps, 50/60Hz or Single phase 2W + PE 208 – 230V / 6 Amps, 50/60Hz

– Power consumption EUR/US: 1350 Watt-hour

Condition: very good, cleaned

Availability: immediately

Agfa’s well-known Azura C95 and C125 are specifically designed for Azura TS plates of up to 95 and 125 cm wide. You either install them on a stand-alone basis, or connect them online with the plate setter (through an L-shaped or straight conveyor). They work perfectly in daylight and at room temperature.

These clean-out units can deal with up to 15,000 m² of plates a year, while only needing 20 l of water for each 300 m2 of plates. As the main ingredient of the gum solution, the water circulates in a closed loop, saving on water costs.

• Tool-free maintenance
• Stand-alone unit or online connection with plate setter
• Chemistry-free solution
• Swift refill and simple cleaning procedure

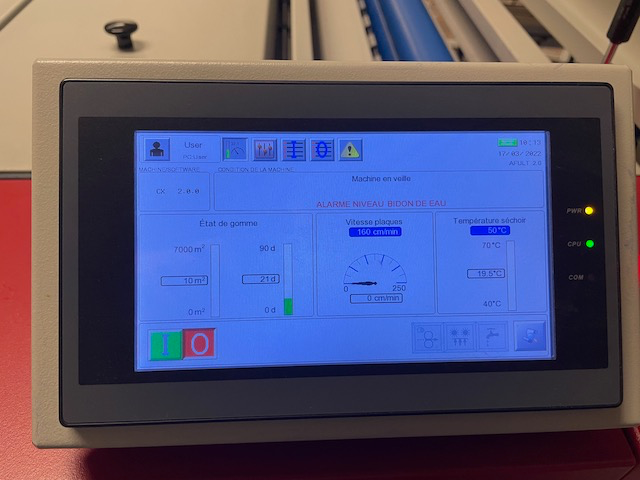

• Intelligent interface
