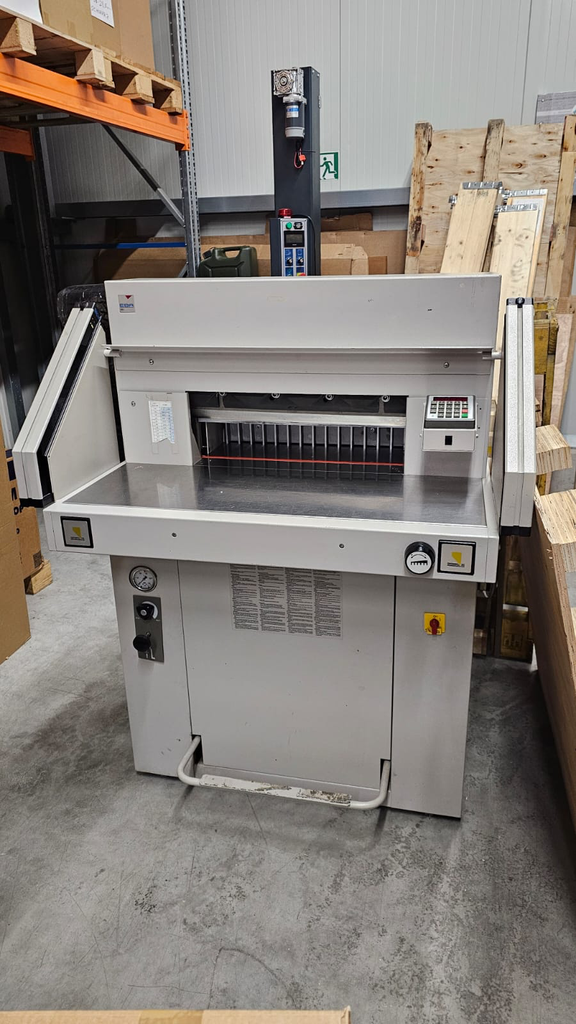

used hydraulic guillotine EBA 551
Y/M: 2001,
with light barriers
electro-mechanical knife drive
hydraulic drive for pressing beam
Continuously adjustable pressing pressure (min. 200 daN, max. 1100 daN) with display via pressure gauge
Foot pedal for prepressing or as a cutting gander
Press bar cover
electrically operated backgauge with professional program control
electronic handwheel with infinitely variable speed for manual backgauge fine adjustment
Optical sectional viewer with high-intensity light-emitting diodes (LEDs)
Press beam guided on both sides for uniform pressing pressure
Precision back gauge spindle
adjustable backgauge rake with narrow pitch (32 mm) and plastic glides
two side stops each on the front and rear table
All-steel knife carrier and readjustable knife guides
Electronically controlled, pivoting safety device on the front table
transparent safety cover on the back table
Main switch and safety lock with key
Two-hand cut release with repeat lock and simultaneity control
Cutting length: 520 mm
max. Cutting height: 80 mm
Residual cut: 22 mm
Residual cut with press beam cover: 90 mm
Insertion depth: 520 mm
Condition: good.
Availability: immediately
